Test-Board from PCBWAY has Arrived!
Some days ago I ordered a testing PCB from PCBWAY, and today the package has arrived!

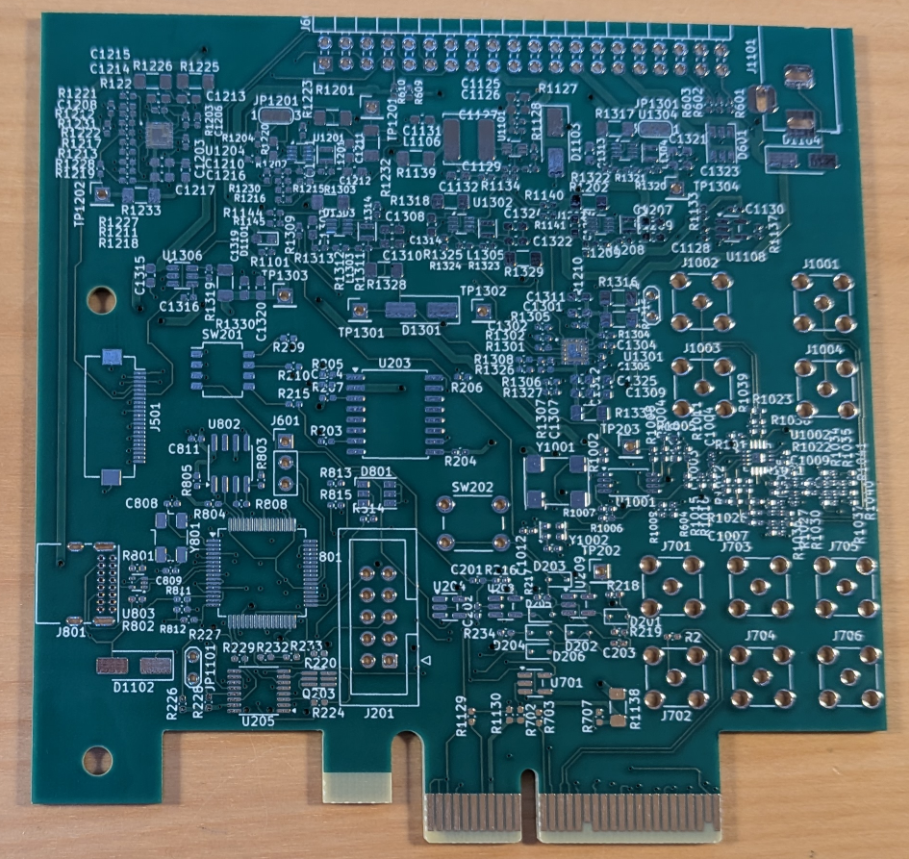

FRONT:

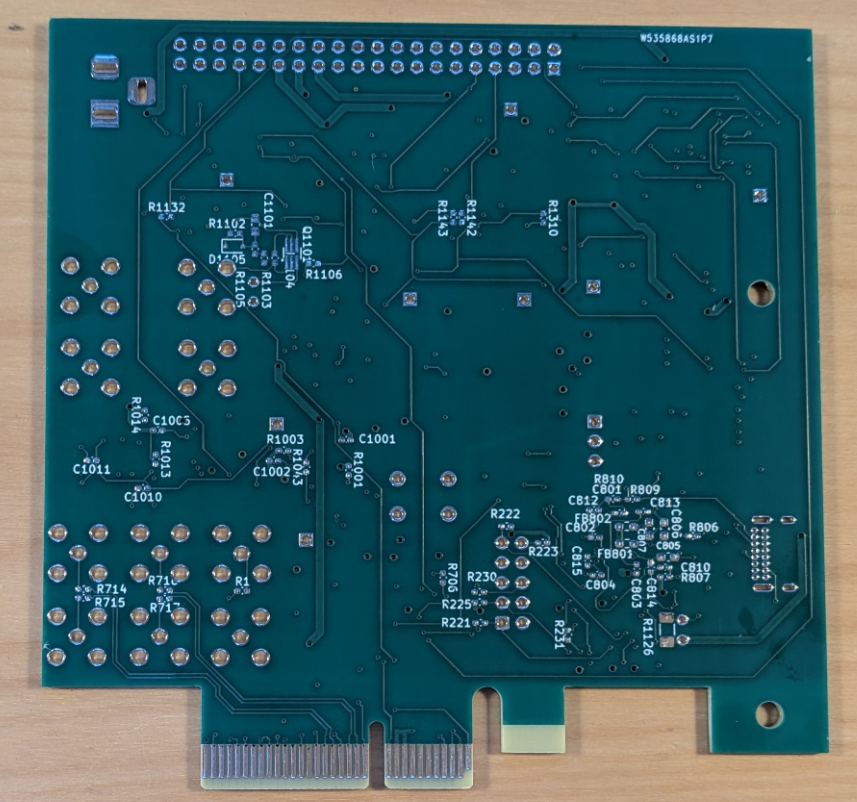

BACK:

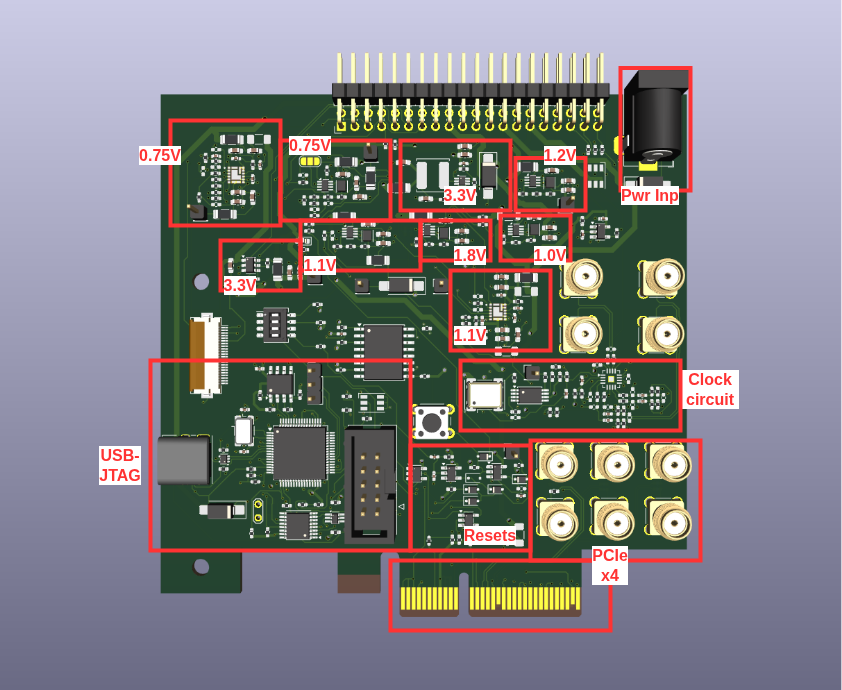

As discussed in the previous article, this is a test-board for the future PCIe card with Agilex 3 FPGA. But presently - no FPGA. The board combines several power supplies (dc/dc converters), clock generator with level shifters, reset, and USB-JTAG:
